A200 mustard pot mine picture

[BMG50]

I found a good picture of a A200 mustard pot mine showing the bits that make up the mine like adaptors but the picture is not very clear, does anyone have a good picture, i belive its from a French manual.



[stecol]

Take a look here
Regards
Stecol



[BMG50]

Many Thanks Stecol.



[stecol]

Hi BMG50,

I forgot a pair of links:

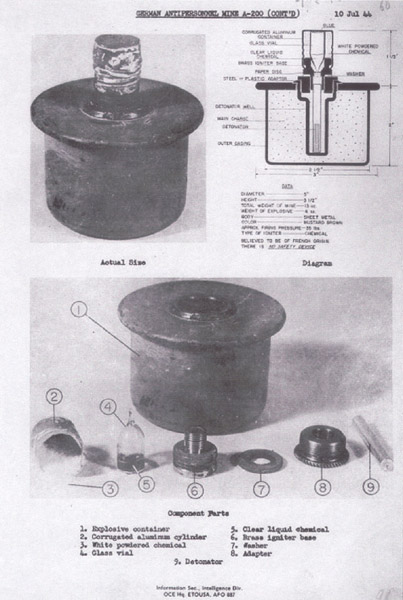

http://www.dbt-eod-012.com/theme_A200.htm (http://www.dbt-eod-012.com/images/Mines/A200/A200_Gr_15.jpg)

http://www.dbt-eod-012.com/theme_BuckZunder.htm

http://wehrmachts.kisten.free.fr/mineA200.htm

Ciao
stecol



[BMG50]

It seems that there were several types of pot mine in this picture, showing that they dismantle for preperation before use. What do the German manual say? anyone have any info.



[BMG50]

I have been looking into the adaptor used for the pot mine and it seems that its a two piece afair. Anyone out there have one in their collection to show or any better pictures. Is there a better picture of the top half of the first picture i posted.



[Tarbelin51]

A 200 Mustard

Hello

Here are some pictures I have regarding the Mine A200.
You'll see three openings to the establishment of the igniter.
And a data sheet. Sorry, I have nothing better to provide you.



[millsbomber]

Was this the adapter you was looking for BMG........ Dave



[BMG50]

Many Thanks Tarbelin51 and Dave just what i am looking for. Many Thanks to you both.



[BMG50]

Another question, was the A200 pot mine a French mine, made in France but used by the Germans or was it a German design made by the French under occupation. Are they any markings or stampings on these mines ie the usual three letter code, a date or number or letter may be?
